Build tube projects with confidence.
Free online fabrication tools for pipe and tube professionals. Generate coping templates, calculate bends, and design complete tube assemblies in minutes.
Build tube projects with confidence.
Free online fabrication tools for pipe and tube professionals. Generate coping templates, calculate bends, and design complete tube assemblies in minutes.

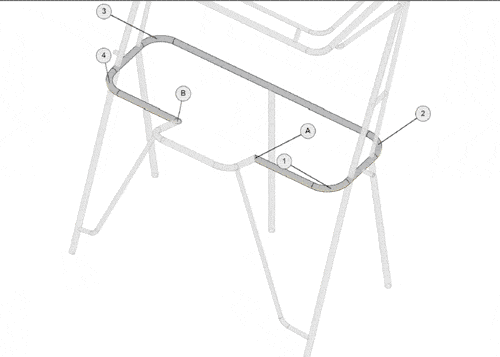

Lay out complete tube assemblies in 3D, then automatically generate every cut length, cope template, miter template, and bend location — ready to print and take to the shop.
FREE to use. PRO account required for Exports

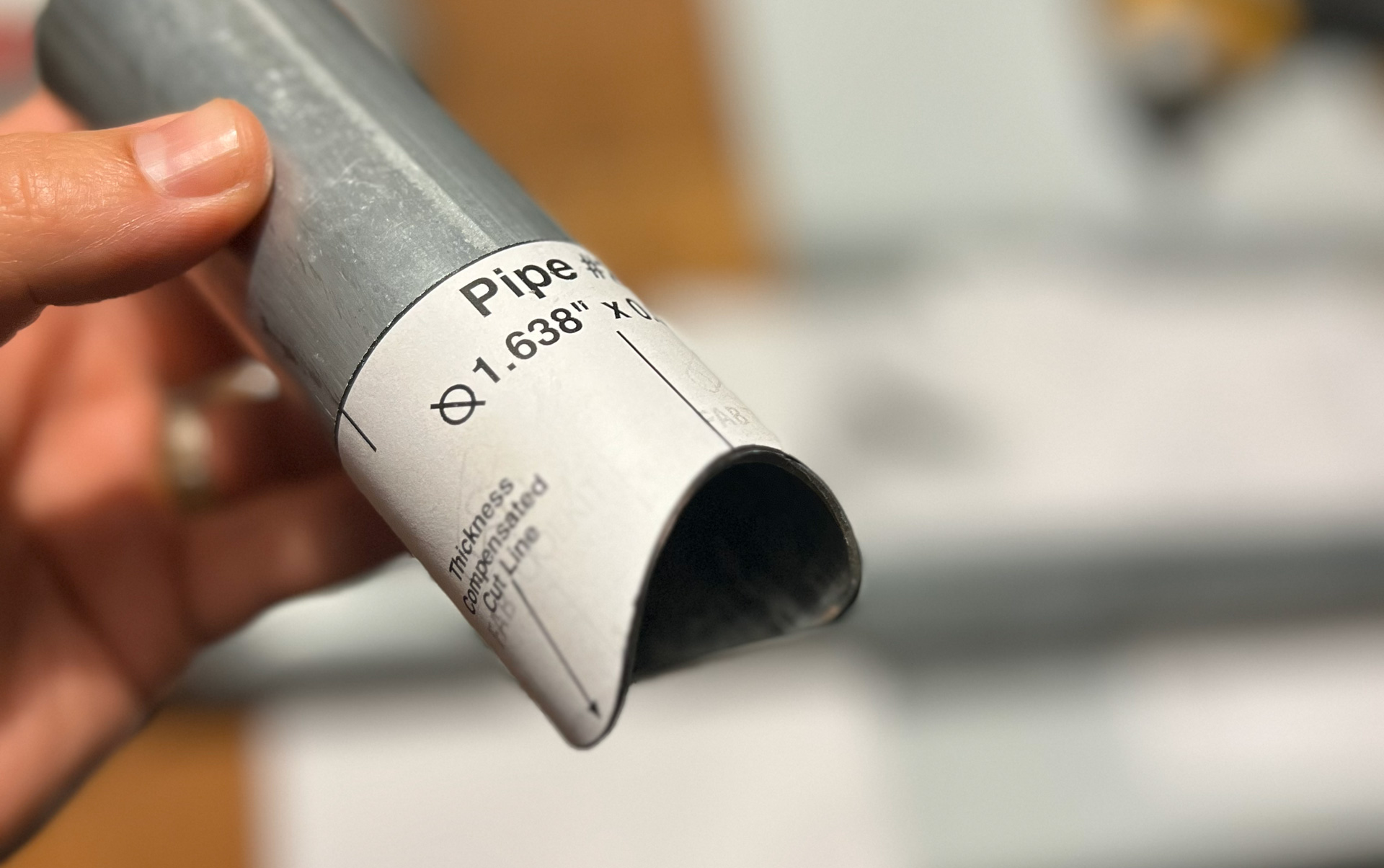

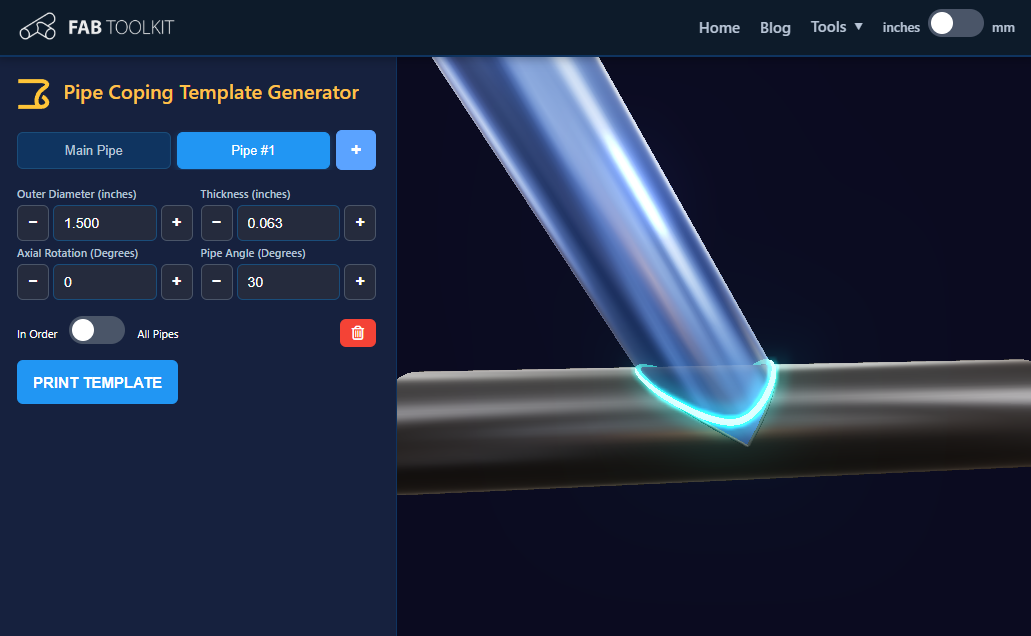

Enter your pipe sizes and angle, then print a full-size PDF template. Wrap it around the tube, mark the cut line, and cut.
FREE. No account required

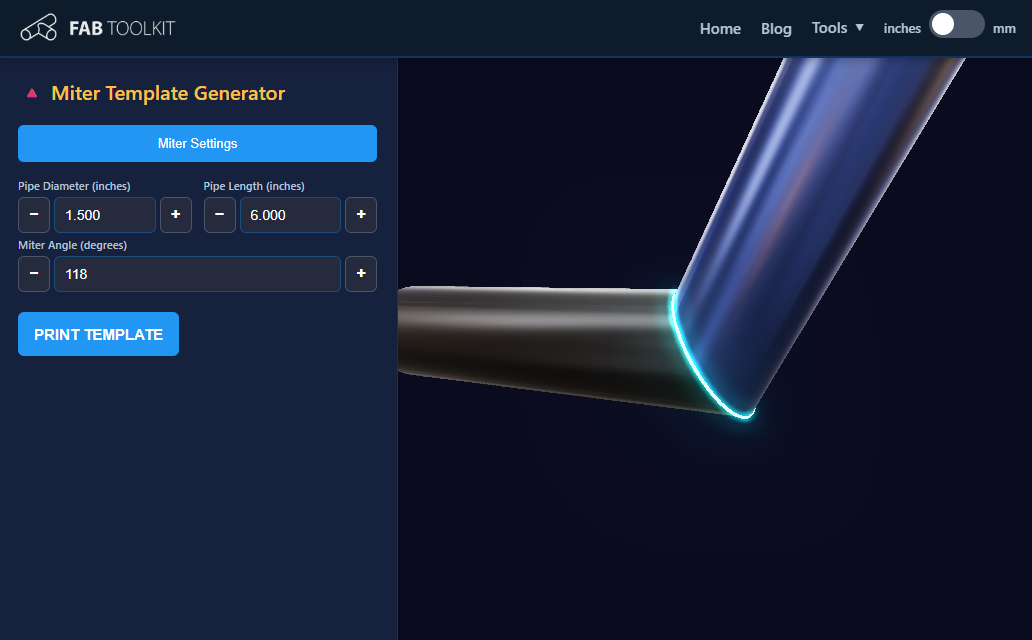

Set your pipe size and miter angle. Print the template, wrap it around the tube, and cut — no guesswork, no math.
FREE. No account required

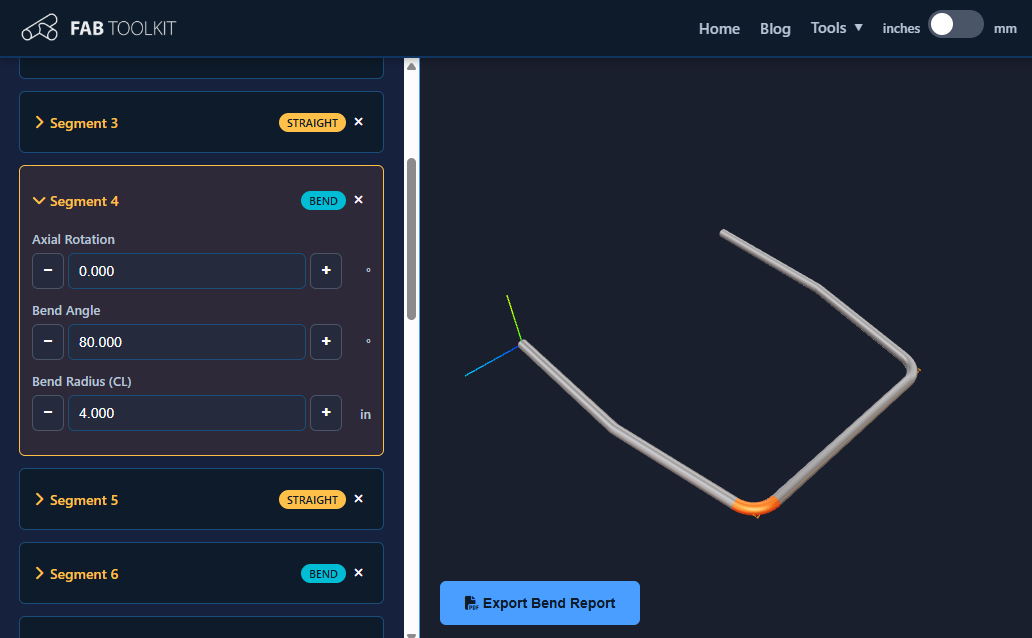

Design multi-bend tube paths in 3D and get a complete bend schedule — lengths, angles, and arc positions for every segment.
FREE. No account required

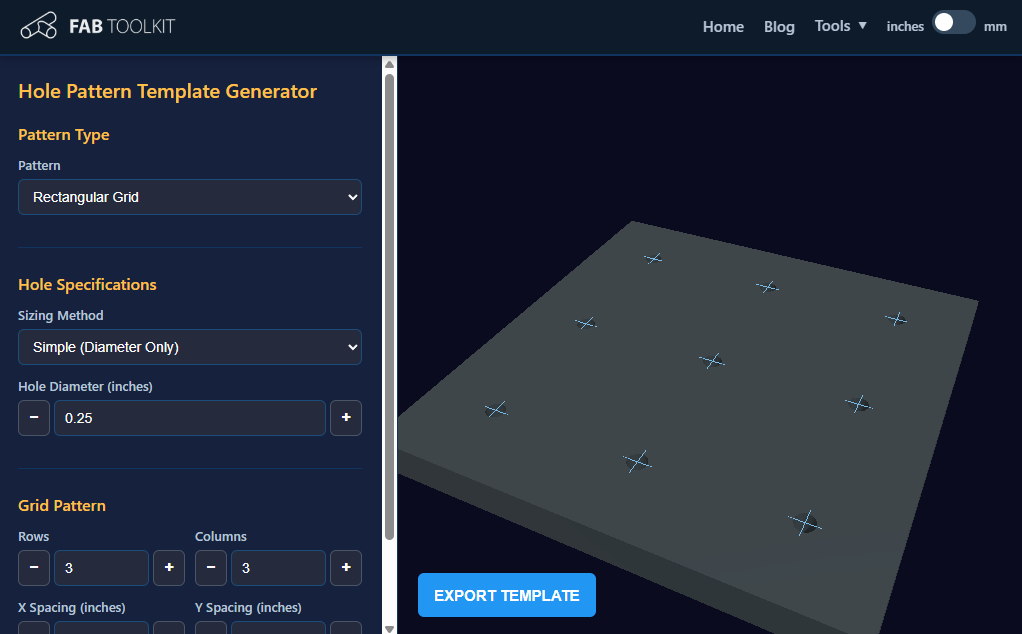

Create linear, grid, or bolt circle patterns and print a full-size PDF template ready to lay directly on your material.
FREE. No account required
| NPS | OD | Sch 40 | Sch 80 |
|---|---|---|---|
| 1" | 1.315" | 0.133" | 0.179" |
| 1½" | 1.900" | 0.145" | 0.200" |
| 2" | 2.375" | 0.154" | 0.218" |
| 3" | 3.500" | 0.216" | 0.300" |
| 4" | 4.500" | 0.237" | 0.337" |
Everything a fabricator needs to look up, in one tool. Stop switching between references mid-job.
FREE. No account required
Tutorials, tips, and guides for metal fabrication and pipe coping
